The Best Metric IEC Motors in the US

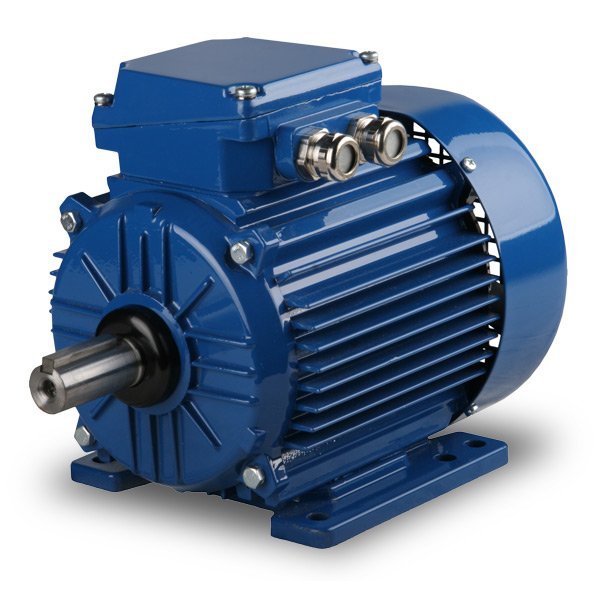

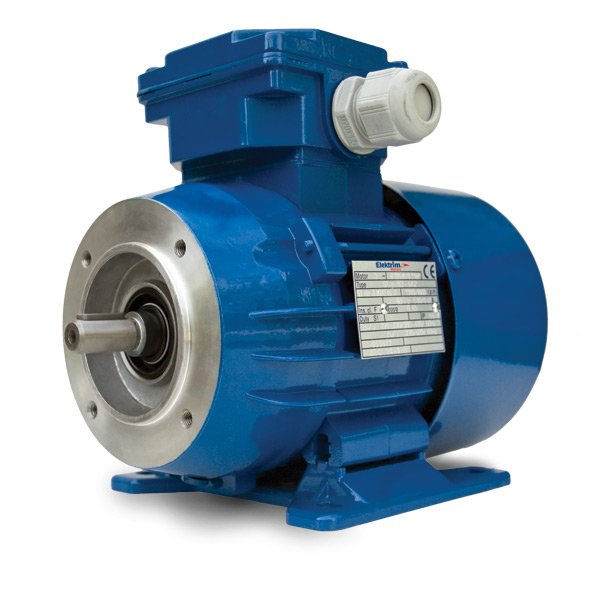

3PH TEFC 60/50 Hz AC Foot Mounted (B3), C-Face (B34 and B34/1) and D-Flange (B35) Metric IEC Motors
Metric IEC Motor Features
Inverter Duty Rated: 5:1CT & 10:1VT at 460V 60 Hz
Service Factor: up to 1.2 at 460V 60 Hz
Design: “N” or “H”
Protection Degree: IP55
Enclosure: TEFC
High lock rotor torque
VPI process applied for best electrical performance
IEC132 frame and larger suitable for Y/Delta starting
Electromagnetic compatibility standards:
EN 50081-1(2) and EN 50082-1(2)
Nameplate rated 230/460V 60 Hz and 380/400V 50 Hz
Oversized ball bearings on both ends for direct coupling
Class “F” insulation
Junction box equipped with glands
F3 mounting position
Drilled and tapped end shaft
Drain plugs
Bidirectional fan
All Metric IEC motors provided with CE mark
Warranty: 3-Years
