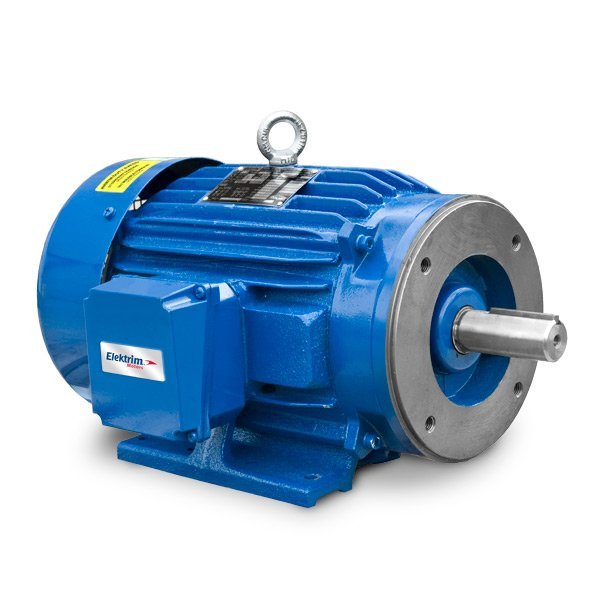

Performance Premium Efficient – 1-400 HP
Features
Inverter Duty Rated: 10:1CT & 20:1VT
Service Factor: up to 1.4
Design: “B” or “A”
Protection Degree: IP55
Enclosure: TEFC rigid cast iron frame
Motors meet NEMA premium efficiency requirements
VPI applied for best electrical performance
Oversized ball bearings on both ends
Designed for horizontal and vertical application
Low vibration level (below 0.08 in/sec)
Dual rated for 190/380V 50 Hz
(additional voltages available upon request)
Class “F” insulation with rise at or below Class “B”
PTC140 thermistors standard 320 frame and up
Space heaters standard 447 frame and up
Motors 213T and larger suitable for wye/delta starting
Impregnation resin and winding wire Class “H” (DN2E200)
Stainless steel nameplate with connection diagram
Efficiency tested according to IEEE112 Method B
CSA-US certified, DOE approved, CE and NEMA Premium® marked
Warranty: 3-Years
